論文分析 Analyzing

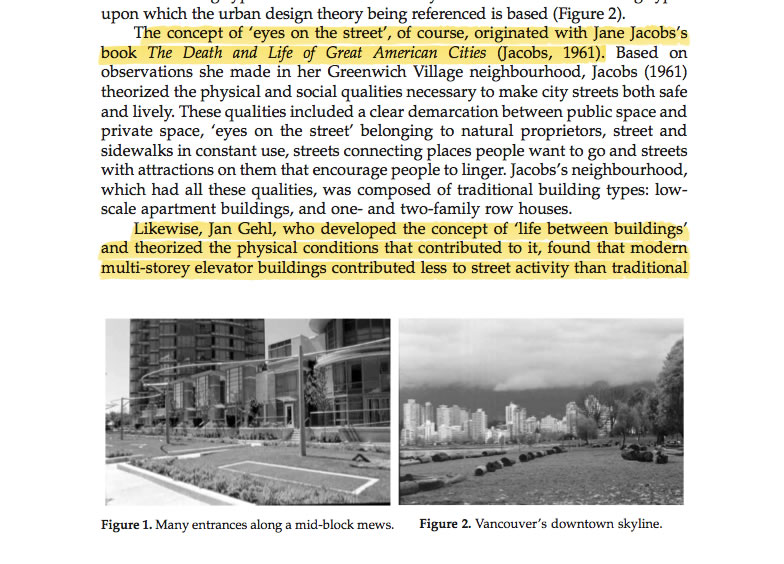

Jacobs-eyesonthestreet,Gehl-­‐lifeBetweenBuilding

透過 文獻回顧 得到設計準則、 概念
(1)Jacobs-eyes on the street
(2)Gehl-­‐life Between Building


• Context1.
Existing office and commercial areas that have been rezoned for residential use,
which have a street,block and lot infrastructure already in place, and where there are many property owners.
• Context 2.
Large former industrial sites that are unplatted and have one or several owners.
• Context 3.
Existing high-density residential neighbourhoods that have a street, block and lot infrastructure already in place, and where there are many property owners.

從案例的context作為選擇的判斷條件

• Individual entries for all ground-­‐floor dwelling units.
• Completely underground or hidden parking garages.
• Maximum and minimum building heights along street frontages, and extending buildings to block corners.
• Maximum and minimum setbacks along street frontages.
• Terraces or gardens at ground‐floor dwelling unit entries.
• Articulation of the building massing so that individual ground‐ floor dwelling units are expressed on the building’s façade.
• Requirements for individual dwelling unit entries to be raised at least 1 m above ground level.
• The provision of specific design elements with the setback areas at the ground‐ floor direct entry units.

利用準則檢測選擇的案例

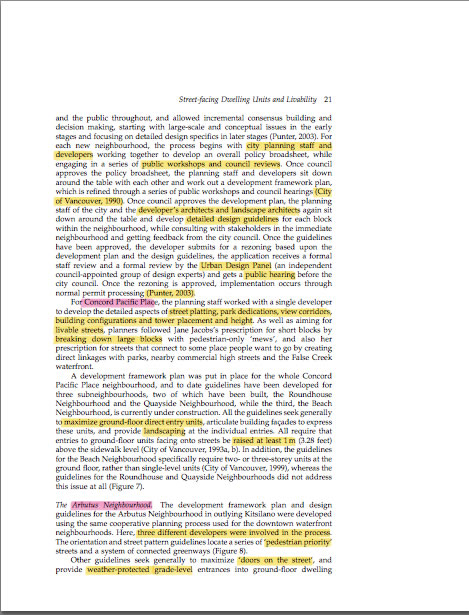

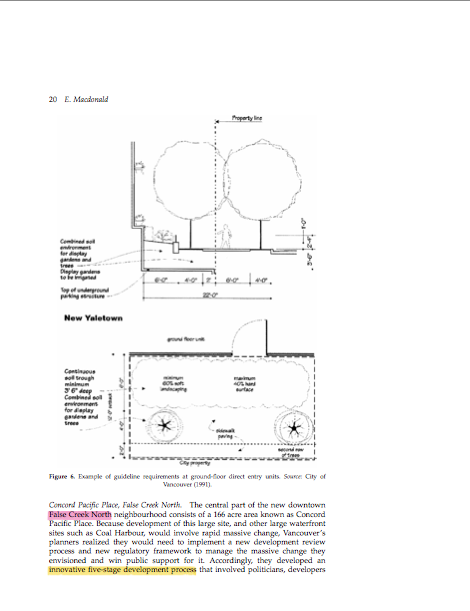

False Creek North neighbourhood Concord pacific Place

文獻回顧:案例設計過程 設計者、使用準則、概念

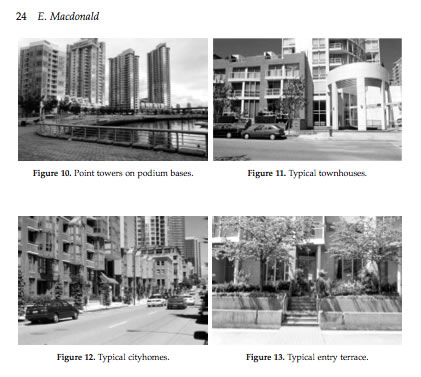

high density townhouse

Emerging Building Types
作者透過法規(FAR),敘述高密度住宅成因,再描述排屋形式在各案例中,和街道、人行步道界面關係。

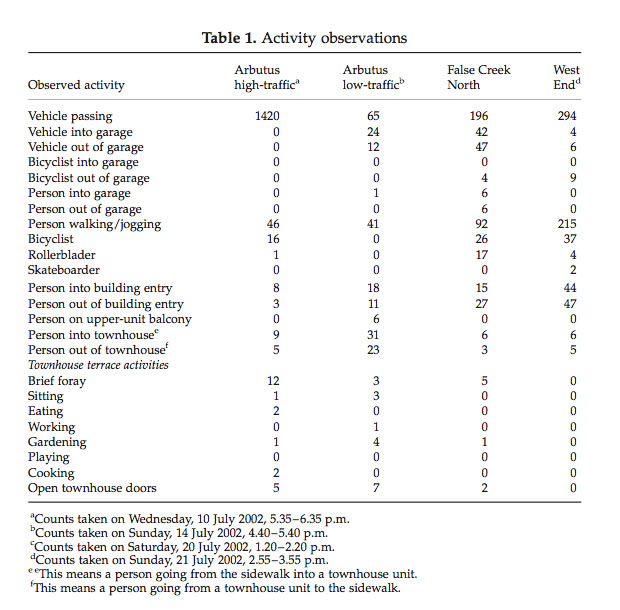

Activity observation

活動行為中找到可量化的性質(人數、車數),比對四個區域的差異。

note of field observation

田野觀察的陳述

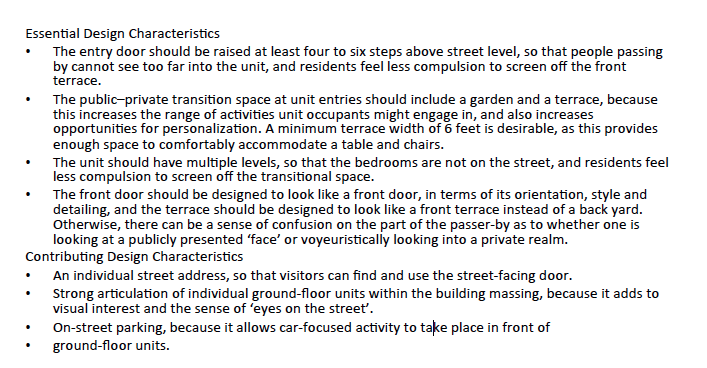

Design Characteristics

統計、定性描述歸納出設計特徵

論文摘要
研究動機
論文分析
研究方法分析
結論
